Upper Extremity
Hand | Distal Radius | Carpal Fusion Plate | Ulna | Humerus | Clavicle | Elbow | Compression Device | Diaphysis | Small Fragment | Cannulated Screw
Hand Plating System
The Maxx Health Hand System is intended for use for internal fixation throughout the hand accommodating a wide variety of anatomy.
Distal Radius 2 System
Our Distal Radius Plates, provide variable angulation while providing a locked rigid construct. Made from titanium, they are low profile with simple instrumentation reducing the clutter on the operating room back table.
System Features
- Anatomically designed for optimal fitting
- Multiple options for distal screw fixation
- Rounded edge for minimal soft tissue irritation
- Poly-axial locking mechanism up to ±15°
- Guide pin holes for temporary plate fixation
Carpal Fusion Plate System
The size and shape of the carpal bones make the application of standard implants difficult. The SUMMA Carpal Fusion Plate provides a specially designed solution for carpal bone fracture and management which pursues the pain-free mobility and stability for hand use in daily living by fixing four-corner bones.
Features
- Cup Type Fusion Plate (6 / 7 screw hole)
- Variable locking up to ±15°
- Low profile Locking Plate
Ulna Osteotomy Plate System
The SUMMA 2.8 Ulna Osteotomy Plate System is intended for use in fractures and osteotomies, in particular for the middle, distal, and proximal parts of Ulna.
Features
- Anatomical plates with low profile for minimal soft tissue irritation
- Poly-axial locking system with 30 degrees variable angle
- Locking plate and screw system provides stable fixation
- Transverse and Oblique type easy sawing guides for 1mm to 10mm adjustment
- Dual purpose peg screw for insertion and compression
Proximal Humerus and Greater Tuberosity Plate
The SUMMA Proximal Humerus and Greater Tuberosity Plate is indicated for fractures, fracture dislocations, osteotomies and nonunions of the proximal humerus. The availability of locking, cortical, and cancellous locking screws allows for pre-defined and preferred insertion angles.
Features
- Anatomically pre-contoured with longer sizes (up to 19 holes) available
- Variable Locking up to ±15°
- Suture Holes & Grooves for Additional Suturing
- Greater Tuberosity plates available in splitting and avulsion types
- Greater Tuberosity plates lessen deltoid damage and preserves integrity of rotator cuff
Clavicle Plating System
The Clavicle Plate provides an optimized fit for the clavicle bone. And the SUMMA Clavicle System also offers a variety of screws to help provide flexible surgical technique for users.
Elbow System
The SUMMA Elbow System is a comprehensive system which can be used for fractures and osteotomies of proximal radius, ulna, and distal humerus.
Features
- Available for various fracture patterns of the Distal Humerus & Proximal Ulna
- Anatomically Pre-contoured
- Variable locking up to ±15°
- Ø2.5 / Ø2.8 / Ø3.5 mm Locking & Cortical screws available
Diaphysis System
The Diaphysis system provides multiple options for treating the diaphysis of the upper and lower extremities.
Small Fragment System
The SUMMA Small Fragment System is a locking plate system for multiple or complex fracture fixations. The plate design is carefully designed and engineered for different fracture types. The plates provide flexible surgical techniques for the users. Examples include, but are not limited to the hand, wrist, foot, and ankle.
Features
- Low profile plates with flat head screws
- Easy dynamic bending allows for 3-dimensional contouring on bone
- Plates can be easily cut into different shapes for various fracture types
- Poly-axial locking system with 30 degrees variable angle
- STARIX screw with self-retaining function minimizes cam-out and recess breakage
Cannulated Screw System
A range of headed as well as headless cannulated screws with simple instrumentation.
Features
- Head & Headless options
- Reverse cutting flute for ease of screw removal
- Thread length choice for best fit of distal threads into bone fragment
- Self-tapping flutes reduce OR time
- Available in 2.3/3.0/3.0/4.0/4.5/6.0 mm sizes
Compression Device

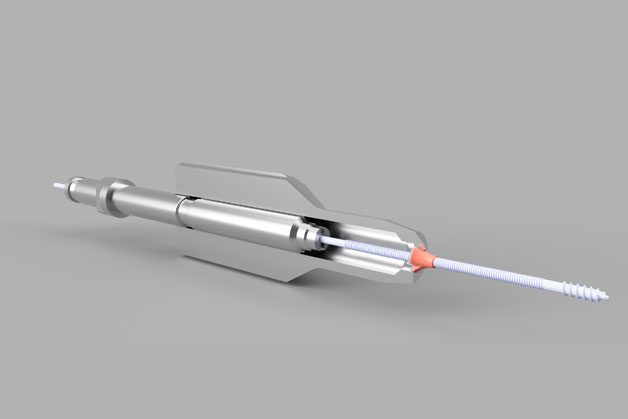

The OptOssol™ compression device offers a unique hybrid wire and screw design which allows for variable and increased compression.
Innovative New Design
- Inserts under power with a wire driver for
ease of use - Floating head allows for high degree of
variable compression - Head moves independent of shaft reducing
the risk of stripping bone threads - Can be cut to desired length reducing screw
inventory - Bone threads come in 1.7mm, 2.5mm and
3.5mm diameters - For use in upper and lower extremities*
The OptOssol™ Compression Device is indicated for use in the internal fixation of fractures, fusions and revisions. The system is intended for but not limited to Upper and Lower Extremity surgery but is not intended for spinal use.
Maxx Health is the US distributor for the products detailed.
Summa Orthopaedics, Tyber Medical and Jeil Medical are the manufacturers for these products.
